The SQ lift system is designed to maximize and simplify the storage of upper cabinets. Its precise mechanism ensures smooth opening and stable movement. With its refined design and decorative covers, it integrates seamlessly into modern kitchens and living spaces.
The SQ lift system ensures a soft and quiet closing thanks to its adjustable damper. Easy to install, it offers 3D adjustments for perfect door alignment. Its reliable and stylish system combines user comfort with lasting elegance.

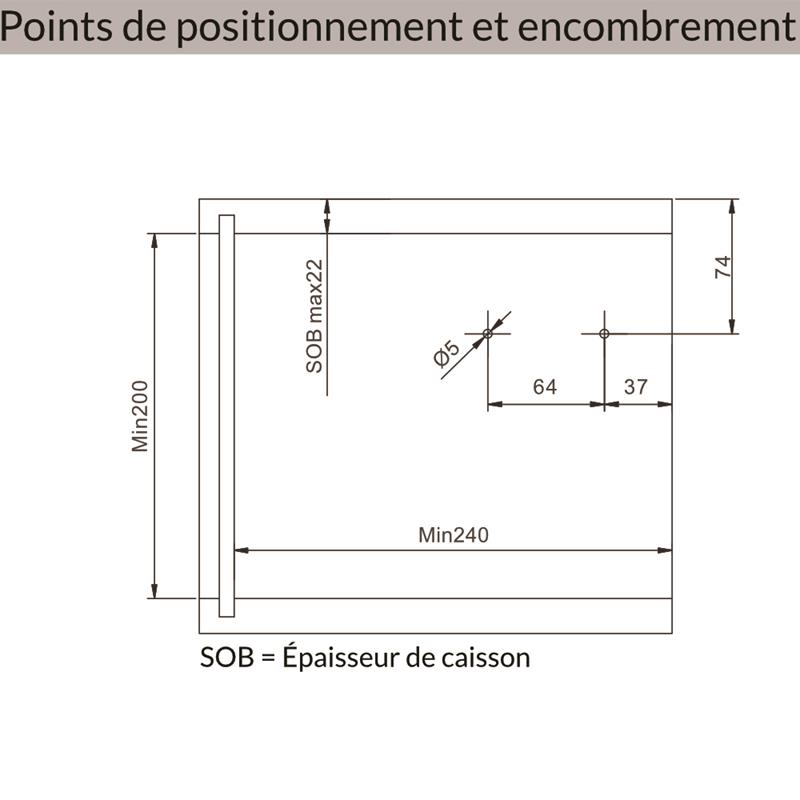

• Opening angle: 107°• 3D door adjustment (+/- 2 mm in all directions)• Adjustable opening tension and stay-in-place function• Door height: 250 to 600 mm (10" to 23 5/8")• Maximum door width: 1200 mm (47")• Door thickness: 16 to 28 mm (5/8" to 1 1/16")• Minimum installation depth: 240 mm (9 1/2")• Power factor (LF) = 1600 to 3600
Power factor (LF) calculation = Door height (mm) × Door weight (kg), including twice the handle weight
The power factor (LF) can be increased by 50% when using a third arm.
